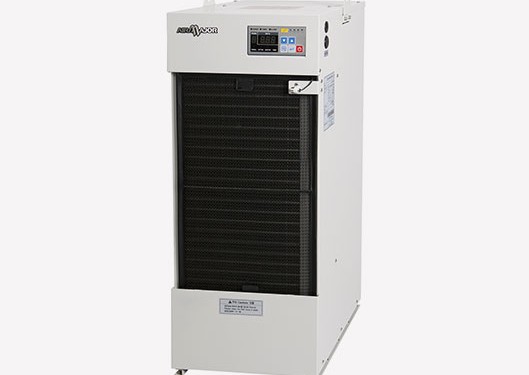

Máy làm mát dầu - Oil chiller AMOC-15G(T)

Máy làm mát dầu - Oil chiller AMOC-15G(T)
Mã sản phẩm AMOC-15G(T)
Danh mục MÁY LÀM MÁT DẦU - OIL CHILLER
Thương hiệu AIRMAJOR
Xuất xứ Hàn quốc
Tồn kho 1 cái
Giá Liên hệ

Mua hàng
CÔNG TY TNHH KURA VIỆT NAM
Hà Nội:
+ 58 Tố Hữu, Nam Từ Liêm, Hà Nội, VN
+ 275 Nguyễn Trãi, Thanh Xuân, Hà Nội
Hồ Chí Minh:
+ Đường D2, Hiệp Bình Phước, Thủ Đức, Hồ Chí Minh
091.228.65.66 - 091.336.0223 - 083.813.4442
[email protected]
Quý khách hàng mua số lượng lớn vui lòng liên hệ để nhận giá tốt nhất

Oil Chiller Airmajor Kura model AMOC-15G(T) là sản phẩm sản xuất chuyên dụng để làm mát cho hệ thống dầu thủy lực của các loại máy công cụ, đặc biệt là nhà sản xuất cho các máy công cụ Moriseiki

Là sản phẩm thay thế cho các loại Oil cooling unit Daikin model AKZ438, AKZ439, Kanto Seiki Oil Matic model MLSA-11, MLSA-55 ..

bar_d
What is oil cooler?

AIRMAJOR oil cooler controls the temperature of heated oil when a machine is operated, prevents the thermal transformation of machine and maintains the viscosity of oil and lubrication characteristics, which improves the machining precision of machine tool and minimizes the defect and furthermore, helps the extension of service life.


Next Generation precision oil cooler system

 5 horsepower precision oil cooler line-up completed





5 horsepower precision oil cooler line-up completed



  • 5 horsepower precision oil cooler developed (±1℃ unit precise control)
  • 0.5~5 horsepower precision line-up completed








Available to select various evaporator method according to pollution level



  • Shell & Coil Type, Plate Type, Open Type
  • Used in variety for experiment equipment, superprecise machine tool, precise cooler etc






   Shell & Coil Type
(Self-development completed)
· When chip/grounds exist a little
· Machining center/press machine applied		  Plate Type
high pressure (pressure-resistant 10k, low temperature
· When it is clean
· Discharge machining machine/water chiller applied		  Open Type
(Evaporator cover open type)
· When cleaning in open
· Coolant system applied


3 phase compressor applied for all models



  • 0.5 class/1.0 class ; operates smoothly by using a 3 phase compressor
  • Authorized durability with low noise and low vibration
  • Available to respond 380V/440V without transmitter
    (Other maker uses a single compressor for 0.5 class/ 1.0 class which gives difficulties when operating and needs a transmitter.)








High performance superprecise digital controller adopted



  • Easy lamp to see and figures are displayed at the same time
  • Refined touch panel with easy temperature control function
  • Timer and alarm function in case of trouble










Available to control precisely upto oil temperature of 50℃
Customized design for high temperature environment : Available to respond immediately when ambient temperature is 50℃ (option) >> injection circuit applied

  • As the oil temperature increases due to the increase of machining speed of machine tool, the use temperature is adjusted by 40~50℃ (lubricating oil, hydraulic operating oil etc)
  • Realize the precise control up to the limit temperature by using the special cooling circuit (injection circuit)
  • Customized design for high temperature area market (India, China, Vietnam)
  • Affordable design of condenser to prepare for the pollution situation of machining factory

What is injection circuit?
A circuit that protects the compressor by controlling separate electronic expansion valve for the stable operation of cooling system in high temperature environment of ambient temperature 40~50℃







Eco-friendly refrigerant : R-410A

  • •uses eco-friendly new refrigerant with low Ozone destruction index for all models (R-410A)





bar_d
What is oil cooler?

AIRMAJOR oil cooler controls the temperature of heated oil when a machine is operated, prevents the thermal transformation of machine and maintains the viscosity of oil and lubrication characteristics, which improves the machining precision of machine tool and minimizes the defect and furthermore, helps the extension of service life.


Next Generation precision oil cooler system

 5 horsepower precision oil cooler line-up completed


5 horsepower precision oil cooler line-up completed

  • 5 horsepower precision oil cooler developed (±1℃ unit precise control)
  • 0.5~5 horsepower precision line-up completed




Available to select various evaporator method according to pollution level

  • Shell & Coil Type, Plate Type, Open Type
  • Used in variety for experiment equipment, superprecise machine tool, precise cooler etc


   Shell & Coil Type
(Self-development completed)
· When chip/grounds exist a little
· Machining center/press machine applied		  Plate Type
high pressure (pressure-resistant 10k, low temperature
· When it is clean
· Discharge machining machine/water chiller applied		  Open Type
(Evaporator cover open type)
· When cleaning in open
· Coolant system applied


3 phase compressor applied for all models

  • 0.5 class/1.0 class ; operates smoothly by using a 3 phase compressor
  • Authorized durability with low noise and low vibration
  • Available to respond 380V/440V without transmitter
    (Other maker uses a single compressor for 0.5 class/ 1.0 class which gives difficulties when operating and needs a transmitter.)




High performance superprecise digital controller adopted

  • Easy lamp to see and figures are displayed at the same time
  • Refined touch panel with easy temperature control function
  • Timer and alarm function in case of trouble




Available to control precisely upto oil temperature of 50℃
Customized design for high temperature environment : Available to respond immediately when ambient temperature is 50℃ (option) >> injection circuit applied

  • As the oil temperature increases due to the increase of machining speed of machine tool, the use temperature is adjusted by 40~50℃ (lubricating oil, hydraulic operating oil etc)
  • Realize the precise control up to the limit temperature by using the special cooling circuit (injection circuit)
  • Customized design for high temperature area market (India, China, Vietnam)
  • Affordable design of condenser to prepare for the pollution situation of machining factory

What is injection circuit?
A circuit that protects the compressor by controlling separate electronic expansion valve for the stable operation of cooling system in high temperature environment of ambient temperature 40~50℃


Eco-friendly refrigerant : R-410A

  • •uses eco-friendly new refrigerant with low Ozone destruction index for all models (R-410A)



bar_d
What is oil cooler?

AIRMAJOR oil cooler controls the temperature of heated oil when a machine is operated, prevents the thermal transformation of machine and maintains the viscosity of oil and lubrication characteristics, which improves the machining precision of machine tool and minimizes the defect and furthermore, helps the extension of service life.


Next Generation precision oil cooler system

 5 horsepower precision oil cooler line-up completed


5 horsepower precision oil cooler line-up completed

  • 5 horsepower precision oil cooler developed (±1℃ unit precise control)
  • 0.5~5 horsepower precision line-up completed




Available to select various evaporator method according to pollution level

  • Shell & Coil Type, Plate Type, Open Type
  • Used in variety for experiment equipment, superprecise machine tool, precise cooler etc


   Shell & Coil Type
(Self-development completed)
· When chip/grounds exist a little
· Machining center/press machine applied		  Plate Type
high pressure (pressure-resistant 10k, low temperature
· When it is clean
· Discharge machining machine/water chiller applied		  Open Type
(Evaporator cover open type)
· When cleaning in open
· Coolant system applied


3 phase compressor applied for all models

  • 0.5 class/1.0 class ; operates smoothly by using a 3 phase compressor
  • Authorized durability with low noise and low vibration
  • Available to respond 380V/440V without transmitter
    (Other maker uses a single compressor for 0.5 class/ 1.0 class which gives difficulties when operating and needs a transmitter.)




High performance superprecise digital controller adopted

  • Easy lamp to see and figures are displayed at the same time
  • Refined touch panel with easy temperature control function
  • Timer and alarm function in case of trouble




Available to control precisely upto oil temperature of 50℃
Customized design for high temperature environment : Available to respond immediately when ambient temperature is 50℃ (option) >> injection circuit applied

  • As the oil temperature increases due to the increase of machining speed of machine tool, the use temperature is adjusted by 40~50℃ (lubricating oil, hydraulic operating oil etc)
  • Realize the precise control up to the limit temperature by using the special cooling circuit (injection circuit)
  • Customized design for high temperature area market (India, China, Vietnam)
  • Affordable design of condenser to prepare for the pollution situation of machining factory

What is injection circuit?
A circuit that protects the compressor by controlling separate electronic expansion valve for the stable operation of cooling system in high temperature environment of ambient temperature 40~50℃


Eco-friendly refrigerant : R-410A

  • •uses eco-friendly new refrigerant with low Ozone destruction index for all models (R-410A)
